F16 Indexer

F16 Indexer

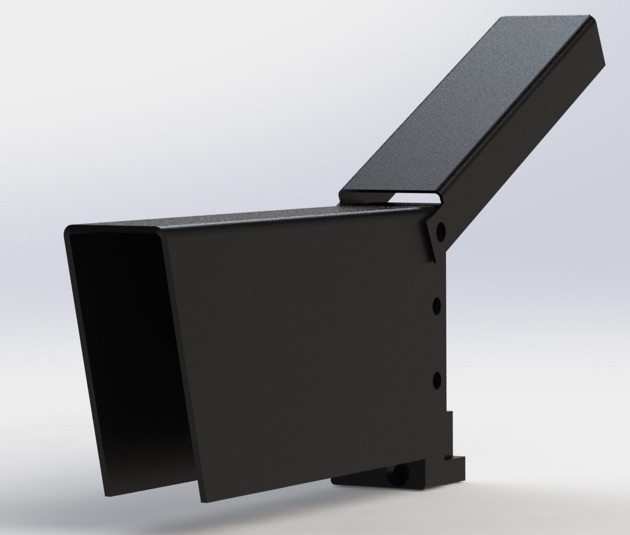

This looks like the left Indexer.

I did not model the 3x text blocks (the transparent ones with text one them). They have the following characteristics (from top to bottom).

1.RDY (blue)
2.AR/NWS (green)
3.DISC (red)
4.0.35”x0.35”

Also, I used sheet metal to construct the hoods. Because of that, you could flatten them out and cut them out on a sheet metal. But also there are relief gaps that you need to weld/solder to fill the gaps (original does that too).

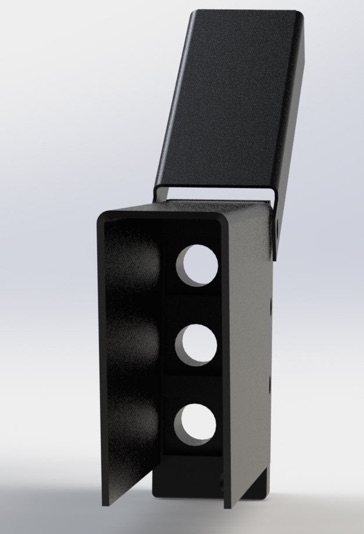

Also, the holes for bulbs... I don’t really know what dimensions they are. I BS’d them. Change them to whatever fits your installation.

I do not have the right indexer. So, I don’t model it. You could, however, easily do a mirroring operation and get the right Indexer’s main plastic body.

Data Source

Authentic F16 Indexer

National Stock No & ADD : N/A

Item Nomenclature : N/A

Model # : N/A

Serial # : N/A

Manufacturer : N/A

Condition : Used

Inspection Date : N/A

Surplus Date : N/A

MFG Date : N/A

Original Price : N/A

Bought Price :

Serviceable Label Not Available

The only marking on it is : USE LAMP MS25237-327AS15

Created Date : Sept 17, 2015

Last Modification Date : Sept. 17, 2015

Files :

https://github.com/JonahTsai/F16/tree/master/Indexer

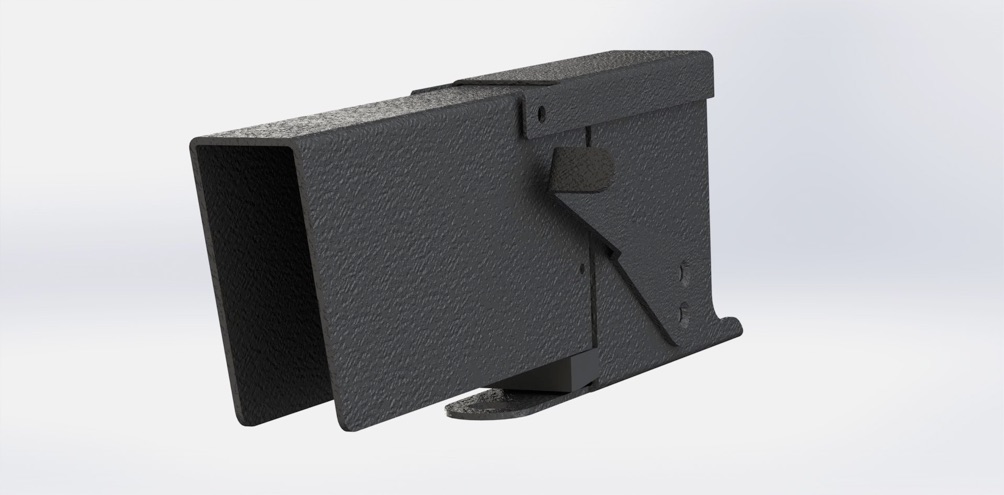

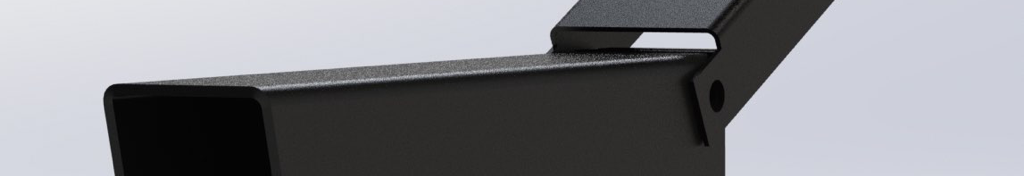

Indexer v2, Later Block, Complete

This is the right indexer from the later blocks. The paint was a bit textured in the rendering due to an older SolidWorks lacking much of the paint scheme that are in the newer version. You don’t care, do you?

A couple of rivet holes are not modeled. You should just drill when assemble -- much more accurate anyway.

Also, internal PCB and springs are not modeled. You would probably change to use LEDs anyway.
